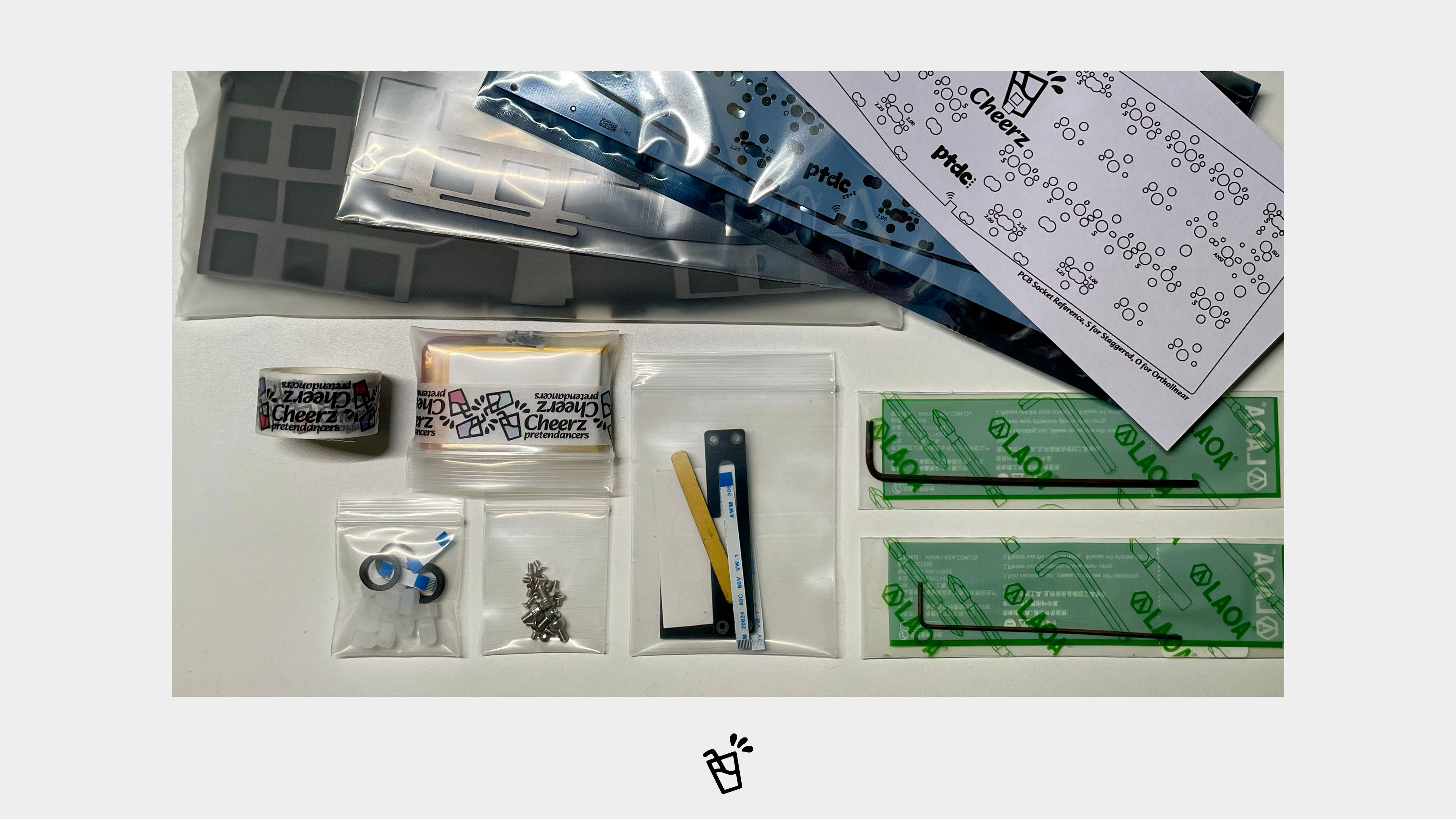

After removing the plastic seal and withdrawing the sleeve, open the magnetic cover. The package should contain the following items:

I - Main components

1. Keyboard Case

    Upper and lower cases with screws fastened.
    Pre-installed:
    	USB-C Daughter Board
    	Short Flex Cable
    	Magnetic Daughter Board
    	Retaining Cover for Magnetic Daughterboard
    	Upper Case Light Diffuser


2. Main PCB

    Packaged in an anti-static bag.


3. Switch Plate

    Packaged in a resealable bag, available in three types: Universal/Ortholinear/Staggered.


4. Foam Set

    PORON Bottom Foam
    PORON Hot-Swap Socket Foam
    IXPE Under-Switch Foam
    PORON Plate Foam(three variants for Universal/Ortholinear/Staggered plate layouts)


II - Accessories

1. Resealable Bag I

   • 14 × M2 Hex Socket Screws (all spares)

       Internal mounting screws, all spares.


   • 8 × M3 Hex Socket Screws (all spares)

       Case mounting screws, all spares.


2. Resealable Bag II

   • 12 × Gasket Silicone Pads (8 in use, 4 spares)

       For gasket mount installation.


   • 3 × Light-Blocking Foam Rings (1 in use, 2 spares)

       Adhesive-backed,
       Install around the center hole of the plate (refer to Installation Guide).


   • 3 × Short Flex Cables (all spares)

       Spec: 16.5mm L, 8-pin same-direction, 0.5mm pitch.
       For connecting the USB-C and magnetic daughter boards, all spares.


3. Resealable Bag III

   • 2 × Lithium Ion Batteries

       Electrical: 3.7V, 1400mAh, 5.18Wh,
       Dimensions: 60mm × 32mm × 5mm,
       Cable Length: 25mm,
       Optional installation.


4. Resealable Bag IV

   • 2 × Long Flex Cables (all spares)

       Spec: 60mm L, 8-pin reverse, 0.5mm pitch
       For connecting the USB-C daughter board and main PCB, all spares.


   • 1 × Magnetic Daughter Board Retaining Cover (spare)

       Material: Black FR4.


   • 1 × Magnetic Daughter Board Bottom Foam (spare)

       Stripe-shaped, adhesive-backed.


   • 16 × Footpads

       8 × White, 8 × Black, adhesive-backed.
       Size: 12mm Φ × 2mm H
       Optional installation.


III - Others

• 1 × 1.25mm Magnetic Hex Key

    For M2 screws.


  If magnetism is weak, magnetize it with a strong magnet first.

• 1 × 2.5mm Magnetic Hex Key

    For M3 screws.


  If magnetism is weak, magnetize it with a strong magnet first.

• 1 × Cheerz Washi Tape

• 1 × PCB Socket Reference Card

    For switch installation guidance. With a QR code to this site printed on the back.


Summary List

• 1 × Upper and Lower Case Set with Pre-Installations
• 1 × Main PCB
• 1 × Switch Plate
• 1 × Foam Set (bottom/Hot-Swap socket/under-switch/plate foam)
• 14 × M2 Hex Socket Screws (all spares)
• 8 × M3 Hex Socket Screws (all spares)
• 12 × Gasket Silicone Pads (8 in use, 4 spares)
• 3 × Light-Blocking Foam Rings (1 in use, 2 spares)
• 3 × Short Flex Cables (all spares)
• 2 × Lithium Ion Batteries (optional installation)
• 2 × Long Flex Cables (all spares)
• 1 × Magnetic Daughter Board Retaining Cover (spare)
• 1 × Magnetic Daughter Board Bottom Foam (spare)
• 16 × Footpads (optional installation)
• 1 × 1.25mm Magnetic Hex Key
• 1 × 2.5mm Magnetic Hex Key
• 1 × Cheerz Washi Tape
• 1 × PCB Socket Reference Card
